2V HDP BATTERY
2v HDP Battery made in India
with German technology
Microtex has been manufacturing HDP cells since 2007 for Standby battery applications meeting European norms for power generation hydroelectric nuclear thermal stations.
When you need a failsafe battery bank, trust Microtex HDP cells for power
2V HDP battery are standby battery power storage units. They are lead-acid tubular flooded batteries housed in transparent SAN containers. Required to be transparent for mission-critical applications where the condition of the cell’s electrodes can be inspected visually. 2V HDP battery have a cell voltage of 2 volts & are connected together to obtain higher voltages. Microtex 2V HDP batteries with high power density are available for Power Generation, Hydroelectricity, Nuclear Power Stations, in transparent SAN containers from 100Ah to 3000Ah
High-performance calcium plate technology
Microtex 2V HDP Batteries
for mission-critical applications - power and infrastructural
What sets our 2V HDP cells apart from the rest?
- Efficiency: When you need dependable Standby power for mission-critical applications that hinge on efficiency
- Reliability: Peace of mind that the Standby battery backup power supply will remain constant; longer power backup discharges during a power outage
- Design: German design of battery capacity that meets international specifications
- Durability: Robust heavy-duty construction, coupled with deep-discharge performance when the need arises
- Price: A realistic, and competitive 2V HDP cell price
- Delivery: On time, every time; Guaranteed
- After-sales: A fully committed, PAN India customer care service is available a phone call away to solve any issue quickly and efficiently
Made in India with German Technology
- Trouble-free battery performance
- Very low maintenance with water topping up periods of once in 12 – 15 months
- Our 2V HDP batteries deliver the correct rated capacity
- A dedicated design team for customer service to help you through selection & sizing options
- Microtex 2V HDP batteries have been supplied from 2008 to Nuclear facilities in India and have seen 13 excellent years of battery performance
- The combination of calcium tubular positive plates and lead selenium with low antimony alloys deliver the best performance. in lead acid plate technology for extended battery life & performance.
- Selenium is a grain refiner & creates the right metallurgical structure to mitigate corrosion so optimally required for lead acid grid technology
Request a quote, now
If you are sourcing hdp cells for power generation, get in touch with us.
Technical information - Downloads (click anywhere on the box)
Microtex HDP batteries are available in the complete internationally approved range from 2v 100Ah to 2v 3380Ah in Transparent SAN (Styrene Acrylonitrile) containers & ABS covers
| Positive plate | Tubular plate with special calcium tin alloy |
| Negative plate | Flat pasted with nanocarbons & special additives |
| Separators | Microporous PVC battery separators |
| Container | Transparent Impact-resistant Styrene-acrylonitrile (SAN) |
| Cover/lid | ABS with large visual indicators for polarity |
| Specific gravity | 1.240SG @ 25ºC |
| Terminal pillar post | Patent applied for design with moving pole bushing – leak proof with brass/copper inserts |
| Intercell connectors | Elecctrolytic grade lead plated copper connectors of rated capacity |
| Vent plugs | Aqua trap ceramic vent plug with flame arrestor |
| Operating temperature | -20ºC to 55ºC optimum recommended temp is 10ºC to 30ºC |
| Depth of discharge | normally up to 80% |
| Reference temperature | 25ºC |
| Initial capacity | 100% |
| IU Characteristics | Imax without limitation |
| U=2.23 V/cell +- 1% between 10ºC and 55ºC | |
| Float current | 15mA/100Ah increasing to 30mA/100Ah at the end of life |
| Boost charge | U=2.35 to 2.40V/cell time limited |
| Charging time up to 88% | 6h with 1.5xI10 Initial current, 2.23 V/cell, which was previously discharged up to 80% C3 rate |
2V HDP batteries are not kept in stock and are usually delivered in 60 days. We ensure that you get factory fresh batteries for your order every time.
- Each 2V HDP cell is cushioned well and placed inside wooden crates suitable for safe transport.
- Standard 1 year for all supplies
Microtex OPzS Battery generally conform to
- IS1651-2013,
- DIN 40 736 part 1,
- Tests according to IEC 60 896-11 and safety standards, ventilation
- DIN EN 50 272-2
Our labs are equipped with state-of-the-art high-quality life-cycle testers from world-class suppliers Bitrode and Digatron to ensure our batteries stand meet the required electrical parameters to the test of time.
Please click to view certificate

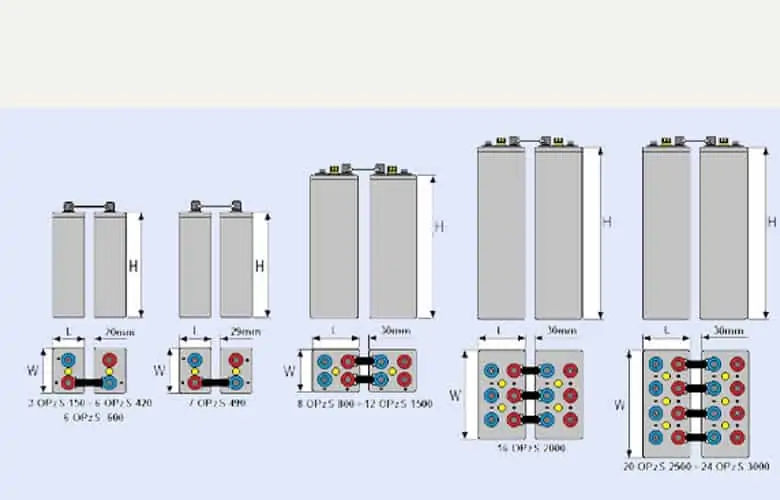

Microtex HDP batteries are offered in Transparent SAN containers in the internationally standard range @ c10 @ 25°C & dimensions:
| 2v 100Ah | L105 x W208 x H420mm | 14.20 kgs |
| 2v 210Ah | L105 x W208 x H420mm | 17.20 kgs |
| 2v 270Ah | L126 x W208 x H420mm | 20.80 kgs |
| 2v 320Ah | L147 x W208 x H535mm | 24.30 kgs |
| 2v 400Ah | L126 x W208 x H535mm | 26.90 kgs |
| 2v 490Ah | L147 x W208 x H535mm | 31.50 kgs |
| 2v 570Ah | L168 x W208 x H535mm | 36.10 kgs |
| 2v 670Ah | L147 x W208 x H710mm | 44.80 kgs |
| 2v 890Ah | L215 x W193 x H710mm | 61.30 kgs |
| 2v 1120Ah | L215 x W235 x H710mm | 74.50 kgs |
| 2v 1340Ah | L215 x W277 x H710mm | 88.00 kgs |
| 2v 1690Ah | L215 x W277 x H855mm | 114.30 kgs |
| 2v 2250Ah | L215 x W400 x H815mm | 151.50 kgs |
| 2v 2810Ah | L215 x W490 x H815mm | 193.00 kgs |
| 2v 3380Ah | L215 x W580 x H815mm | 234.50 kgs |
- 2V HDP Batteries are supplied in robust wooden boxes suitably packed for distant transport within India or export worthy packing
- Lead plated electrolytic grade copper inter-cell cables or connectors of rated capacity
- Inter unit jumper cables
- Cell numbers (plastic discs)
- Lead-plated passivated SS fasteners
- Suitable seismically qualified battery stand if ordered separately; available options – MS, Galvanized steel & FRP
- Acid resistant painted plywood sheet
- Rubber mat & rubber cushion between cells
- Porcelain insulators for each cell 4 numbers
- safety goggles, gloves, utility funnel, brass wire brush, sulfation protection – petroleum jelly sachet
- Spare cells if ordered
- Instruction & maintenance manual
- Charging manual & user record book
- Internal test certificate – 3rd party NABL accredited lab testing available at cost
- Peace of mind with our dedicated all India service support
- In India – one tree sapling to promote a green environment
HDP batteries from Microtex comes with trouble free performance. Annual periodic DM water inspection & topping up, performing equalizing charge & visual inspection for any damages or loose connections is all the maintenance you require for these robust high performance batteries.
Often taken for granted until things go wrong, batteries require some small maintenance and care. 2V HDP Batteries need an equalizing charge once a year to prevent capacity variation and to bring up all the cells up to the same voltage. Leave this important task to the battery experts at Microtex
Microtex will be happy to maintain your battery banks and help protect your investment. Call us to schedule a free health check up of your HDP battery banks +91 9686 448899
If sizing of the HDP batteries are required, we shall be happy to assist you with the correct calculations, please provide the following details:
- Total load of the system
- Total DC voltage of the system
- Number of backup hours required
- Mean ambient temperature
Please provide us with the following information to ensure that you receive the right battery for years of great performance:
- What is the system voltage & capacity of the cells
- Which specification do you need the batteries to conform to? IS spec, IEC spec or DIN spec?
- Number of cells per system/bank
- Are maintenance tools required, if yes please name the items needed
- Are stands required, If so Teak/Sal wood, mild steel, galvanised steel or FRP?
- Do you require the stands to be seismically qualified?
- Is electrolyte required for first filling or do you have access to good quality tested electrolyte?
Please click the link below to view:
Why choose a Microtex battery?
Technical information & characteristics
- Designer lead Calcium alloys in combination with high tin, for positive electrodes & special additives for negative electrodes to prevent failure due to corrosion
- Special electrode design provides better & faster conductivity to the terminals minimising internal resistance losses
- Calcium lead grids reduce the need to top up considerably
- Hardened lead alloy with copper insert terminal posts – provide faster conductivity and fail-proof connections eliminating terminal post corrosion
- Accurately balanced active materials ensure overcharge tolerance giving you long life & trouble free performance
- Cured & formation processed plates to doubly ensure full conversion. 2V HDP Batteries are supplied with factory pre-formed plates. This ensure for reliable performance and no excess cycling required in the field to obtain rated capacity. Saves time for critical users.
- Superior Woven Tubular Gauntlets (not NONWovens) for tubular electrodes. Woven tubular gauntlets will not rupture in service and active material will not leak causing internal shorts & failure
- Specially designed Aqua-Trap Ceramic Vent Plugs to retain water which may otherwise naturally escape from the vented cell. In addition they have explosion inhibiting properties. In very large battery installations, hydrogen & oxygen gases are developed in the overcharge phase creating highly explosive gases which could escape from the cell. In case of spark from outside the cell, the flame will be arrested by the porous ceramic.
- High quality electrolytic grade copper inter cell connectors with adequate current carrying capacity
2V HDP cells the fail safe battery, with German technology
- Smart Terminal pole bushing: It is normal for the plates to grow on both sides, vertical & horizontal during the service life of the battery usually occurring noticeably towards the 7th year of service. To accommodate this growth Microtex have designed a unique (Patent applied for), Smart Terminal pole bushing with rubber grommets, and allows for movement upwards without causing breakage to the cover, which is a common mode of failure in these type of batteries (without this unique feature).
- Transparent SAN (Styrene Acrylonitrile) containers for visual confirmation of state of battery condition, so essential to mission critical applications like in nuclear power generation industry
- High impact ABS cover with large polarity indication enhances cell safety and bright colours for easy visual of terminal polarity
- Thicker spine grids & busbar ensure better compaction of lead, can withstand corrosion & provides longer life
- Incredible 150 Bar pressure die casted spine grids for positive tubular electrodes (densely compacted under such high pressures prevent early corrosion failures)
- Special lead coated, corrosion resistant passivated SS bolts

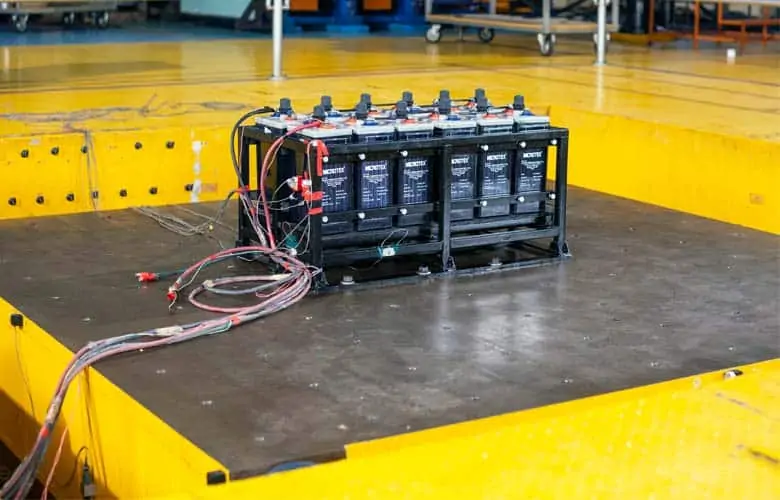

- Microtex HDP Batteries are supplied with floor stands that are seismically tested & qualified by certified by national test houses. Stands are with special acid proof coating.
- Factory Charged Batteries – No fuss no mess. Use straight away, saves time
- Microtex invests years of in-house experience. Our world-renowned battery scientists and experts continuously test and improves our products. Because of this, you’ll receive a more efficient battery than you are likely to buy elsewhere
features and
- The complete international range available for all HDP series from 2v 100Ah to 2V 3380AH in the standard container dimensions with a 20 year designed life @ 25 deg c
- High-capacity tubular battery with deep-discharge characteristics recovers from deep-cycles quickly
- Trouble-free performance with a leak-proof terminal post seal
- Water top-up intervals 1 to 3 years
- Delivers the rated capacity
- We ensure our HDP battery price is among the most competitive in the industry
with more benefits for you
- Long service life - Best return on investment costs
- Low water consumption – less frequent maintenance – very low maintenance water topping up once in 12 months
- Excellent Reserve Capacity- Designed to sustain PSoC up to six months
- Higher charge efficiency = ampere-hour efficiency of over 90%
- Deep-discharge capabilities with higher charge efficiency = ampere hour efficiency of over 90%
- Our prices are keen, too!
- All India service network
Here is the perfect solution if you want trouble-free HDP cell performance
What is the cost of an HDP battery bank?
Experience shows that 80% of 2V HDP batteries last only 7 to 12 years.
Don’t let that happen! Choose long-lasting deep-cycle batteries from Microtex.
- Long service life – 20 years designed life – best return on investment cost
Dependable lead acid battery capacity so you can get complete performance. Your return on investment in Microtex HDP batteries ensures the long term cost is way lower.
Why Microtex HDP cells are made better?
Microtex produces the specially designed lead alloys, lead oxides, grid castings, pasted plates, injection-moulded containers, multi-tubular gauntlets, PVC separators in house, and produces the complete battery using state-of-the-art industry-standard battery making machinery. Our batteries are built with proven designs and undergo complete life cycle testing to international norms before they are offered to the market. The electrical lab is complete with high-quality LCT from world-class suppliers Bitrode and Digatron.
Fun fact for you...! What does HDP battery mean? | HDP battery full form
On an interesting note… what is HDP battery meaning? HDP is an acronym and stands for High Density Power
Microtex 2V HDP cells Applications

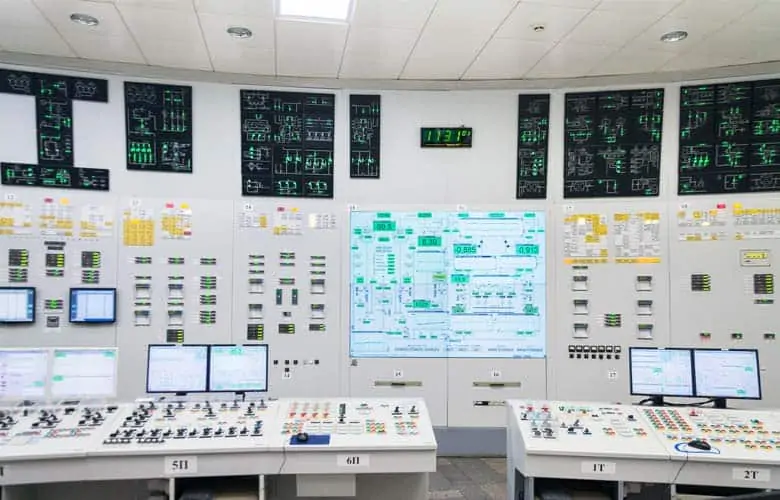

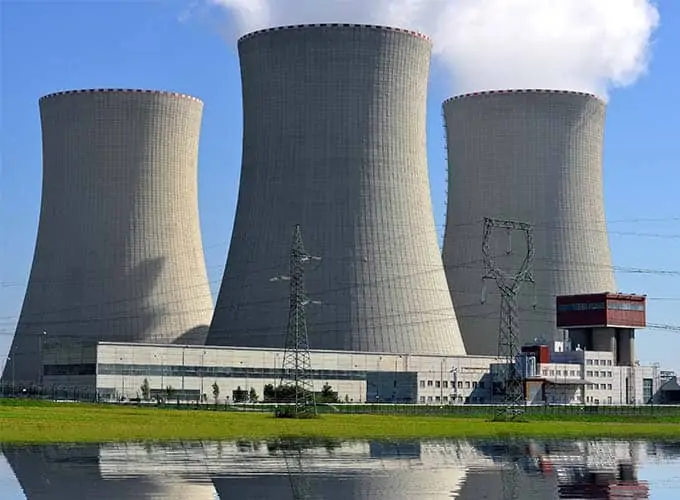

Microtex HDP cells for Nuclear power Industry
Microtex HDP cells are live in various reactors

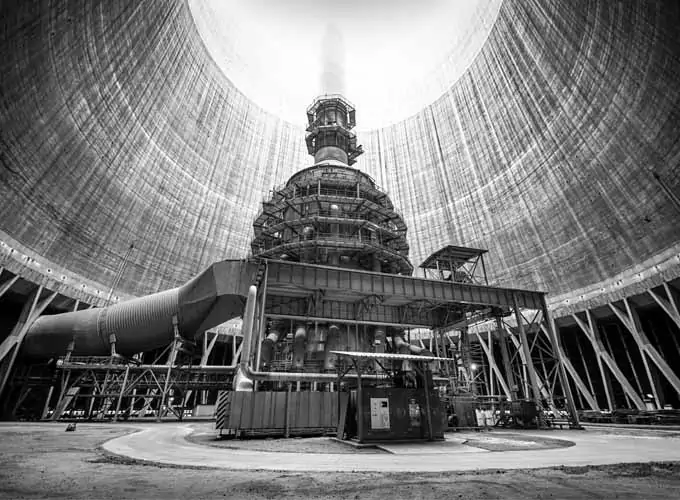

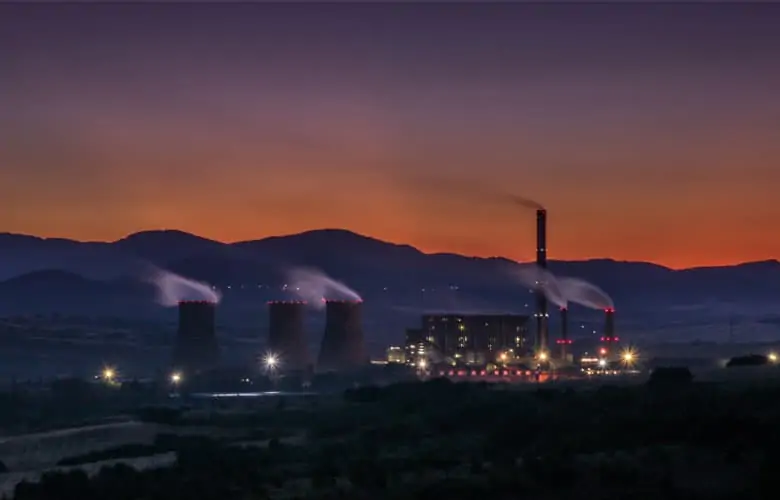

Microtex HDP cells for Thermal Power Plants
Dependable Standby batteries

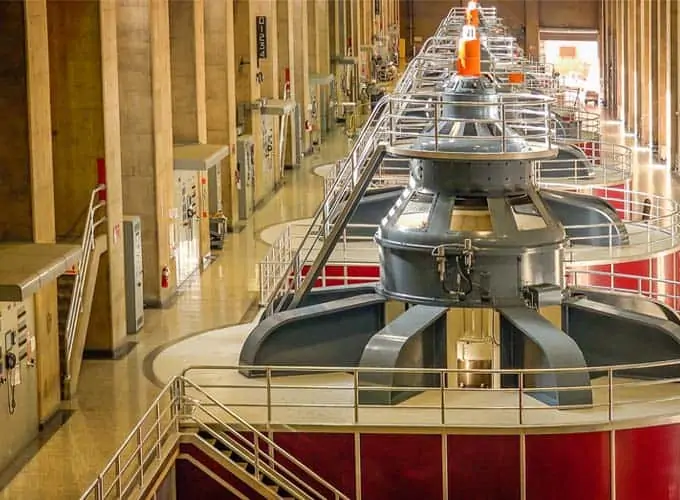

HDP cells for Hydro-Electric power Industry
Deep Discharge Standby battery power systems

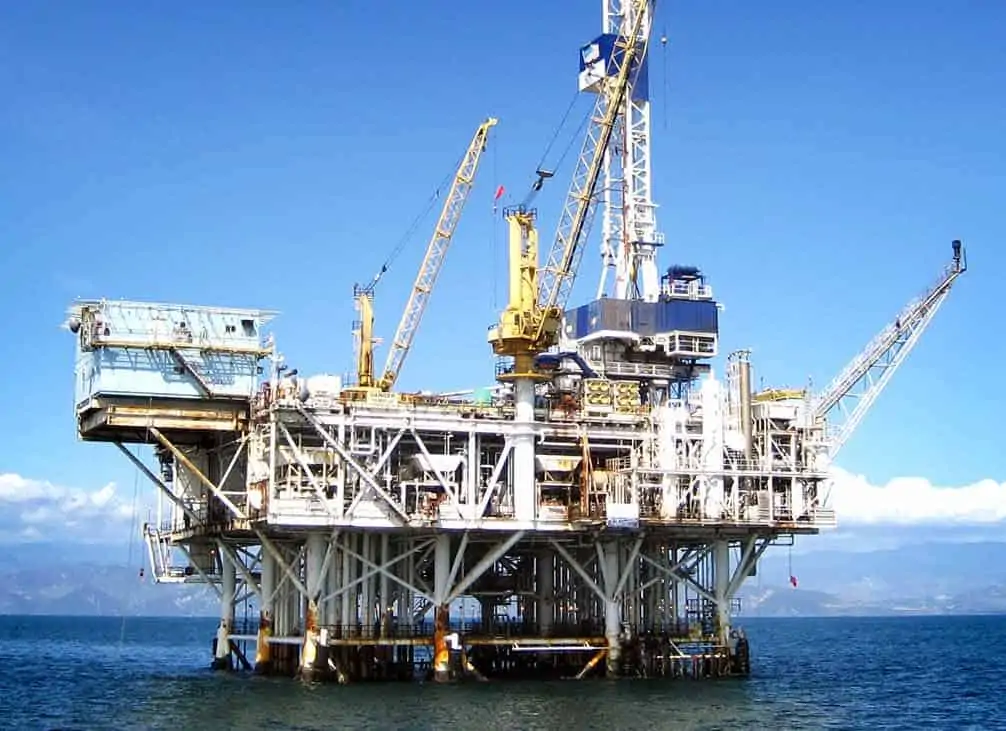

Microtex 2V HDP cells for Off-shore Oil Rigs & Petroleum Industry
When the mission is critical you need a reliable HDP cell for Standby power
2V HDP Batteries for mission-critical industries where power failure is not acceptable like in Nuclear power generation plants, Thermal power stations, Hydro-electric power plants, Electricity substation battery requirements, Large Solar off-grid systems, Oil & gas industry, Petrochemical plants, Controls & Switchgears
Send us an inquiry, now.
German Designs - Made for Indian conditions
Microtex batteries are designed by Dr Wieland Rusch a leading battery scientist & inventor of the copper stretch metal submarine battery design.
Comparable to any leading international brands of batteries – our designs match with the best in the world.
Established in 1969, Microtex is known for its legendary quality
Microtex batteries are known the world over for its dependable & reliable battery performance
Unlike competitors, Microtex makes the complete battery & all its components in house
Microtex produces in house, the specially designed lead alloys, lead oxides, grid castings, pasted plates, injection-moulded containers, multi-tubular gauntlets (PT Bags), PVC separators and produces the complete battery using state of the art industry standard battery making machinery.
Our happy customers
All logos belong to the respective companies & Microtex is not associated with the brands
Microtex Reputation. Highly demanding customer base
- Nuclear Power Corporation of India
- National Hydro Power Corporation
- Electricity substations & Power Generating Stations across India
- Indian Railways
- Oil companies
- Telecom operators
Get a quote, Now!
Established in 1969
Exporting Batteries to 43 countries since 1977!
Battery manufacturing plant in India
What Microtex customers experience

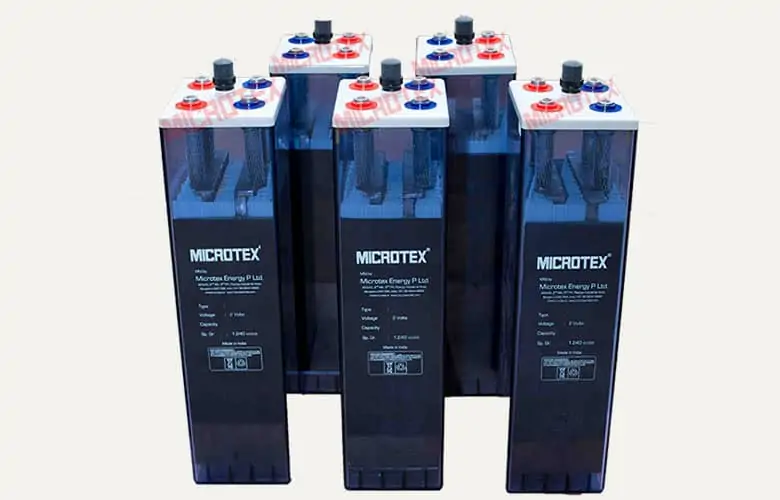

2V HDP tubular plate battery in transparent container
Main advantages of modern technology 2V HDP Tubular batteries over expensive & outdated Plante battery type
| Plante Battery | Microtex HDP Tubular plate battery | Remarks |
|---|---|---|
| Heavy grid & thin layer of active material on surface of grid | Tubular spine grid. Spines made at incredibly high hydraulic pressures up to 150 Bar. The active material is packed in a tubular bag | Active material during cycling in Plante battery will shed down. Whereas in Tubular plate OPzS battery, the active material will hold in the tubular bag. |
| Cover bulging & cover cracks during life due to normal positive plate growth | Special terminal bush design will allow the positive terminal pole to travel up to 12mm & keeps 100% seal against acid & gases | No failure due to plate growth in service life in Microtex OPzS batteries |
| Average cycle life | High cycle life | Life cycles 75% C4 (IEC) |
| Footprint 90% more than Microtex OPzS batteries | Weight is less than Plante battery | The life cycle does not justify the high cost |
| Popular in use before 1960's | Microtex is having experience in making tubular batteries for 52 years | Tubular plate battery technology has taken over the redundant plante battery from 1960 onwards & proven worldwide |
| Oldest conventional design | Microtex uses latest appropriate European designs with modifications for hot tropical climates like in India | Gives excellent performance in service |
| Plante battery plate processing is critical & produces lot of effluents | Plate processing is not critical as plante & produces lot less effluents | Microtex OPzS batteries are produced in an environment friendly factory |
Microtex 2V HDP cells are the most popular battery worldwide in the power sector
