Forklift battery charger

Multi voltage forklift battery charger

Microtex offers forklift battery charger power requirements meeting European norms.

Microtex GoodFresh Forklift battery charger

How do you charge a forklift battery?

Forklift battery chargers must be selected to match the Ampere hour and voltage of the battery. Selecting the right charger is very important for the performance and the life of the forklift battery.

The charger must be reliable & must be capable of:

  • Limiting the temperature rise while charging
  • stopping current at the right time, without overcharging
  • Equalization charge

Create a separate area for charging & comply with all statutory regulations for the hazards involved in handling batteries, battery acid & battery chargers.  Only trained people should undertake the charging of batteries.

Battery charger forklift charging procedure:

  • As soon as the forklift battery is received for charging, the time of receipt and (open circuit voltage) OCV readings are recorded in the relevant log sheets.
  • If there is a metal cover top for the forklift battery, it should be kept open
  • The events are removed and replaced loosely over the vent holes.
  • Using a multi voltage forklift battery charger, the proper charger setting is selected, and the charging clips are correctly connected to the battery terminals.
  • The appropriate charging current is set, and charging commenced.
  • Hourly readings of the terminal voltage, specific gravity and temperature of the electrolyte are recorded with suitable measuring means.
  • Charging may take about 8 to 12 hours.
  • If the battery electrolyte is warm, provide a fan for cooling purpose; exposed metallic parts like inter-cell connectors help in bringing down the temperature of the electrolyte
  • The final on-charge voltage may reach about 2.6 to 2.7 V per cell.
  • At this stage, copious gassing can be observed in all the cells. This is due to the high rate of water electrolysis occurring at these voltage values.
  • Now, the charger can be put on finishing current mode (4 to 5 A per 100 Ah)
  • The gassing should be uniform in all the cells
  • After continuing the charge at the finishing rate for 3 to 4 hours, charging can be terminated.
  • Before switching off the charger, all reading should be recorded.
  • The top of the battery must now be cleaned well, first with a wet cloth and then with a dry cloth.
  • The charging clips are disconnected.
  • The battery is allowed to cool down.  If the battery is required urgently, and there is no time for cooling, follow the procedure described above.
  • If the temperature of the electrolyte is too warm (more than 45°C) and the area in which the forklift is operated also warm (as in foundries), it is best to have two sets of batteries for one forklift where the forklift is used in busy loading stations.

Get in touch, now!

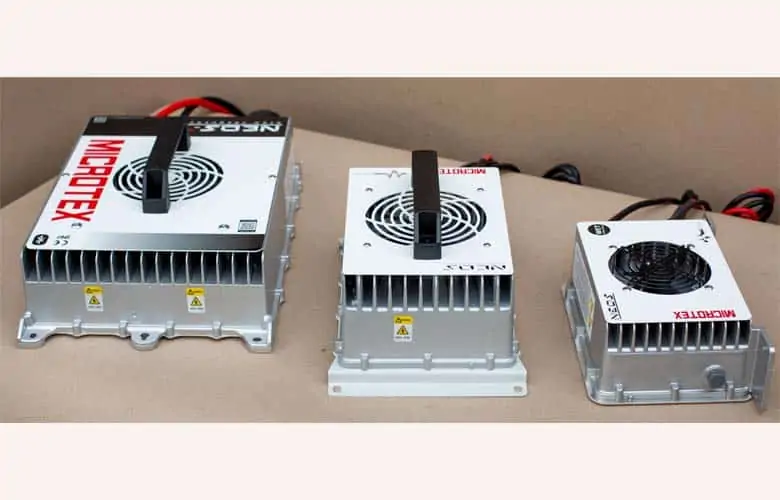

Microtex GoodFresh High-Quality and Reliable Traction Battery chargers.

Charging Time: WoWa 8-10Hrs and Wa 10-12Hrs

Types of chargers:

  • Standard Chargers Type 1 (Charging Time: WoWa 8-10Hrs and Wa 10-12Hrs)
  • Standard Chargers Type 2 (0-12Hrs)
  • Fast Chargers
  • High Frequency Chargers

Technical Features:

Single Phase 220-23—24-255Vac/50-60Hz

Three Phase 380-400-440V/50-60Hz

Visual Display of ON/OFF and charging mode

Low output noise while charging

Charging profile as per International DIN 41774.

Safety Features:

Short Circuit and reverse polarity protection with fuse

Buzzer noise in case of error or malfunction

Working Conditions:

Operating Temperature: -20Dec C to +45Deg C

Traction batteries are an expensive part of an electrically driven vehicle. Reliable and efficient charging equipment correctly matched to battery capacity and required recharge times are a basic necessity for operational effectiveness and optimized battery life and performance. Two charging technologies can be used to achieve this goal: WoWa chargers and HF chargers.

Conventional WoWa chargers offer a reliable and robust way to charge conventional traction batteries. They are cost-effective charging systems for traction applications where a 12- to 14-hour recharge time is appropriate. Their robustness comes at a cost, however: efficiency is only 75%.

High-frequency chargers use switch-mode technology, allowing for a better power factor, increased efficiency and low DC ripple. Reduced energy consumption (15%) and extended battery life (15%) are the result.

50 Hz Chargers

Classic 50 Hz chargers are also referred to as linear or ferro resonant chargers. A transformer and rectifier transform the input AC voltage into a lower voltage DC. Voltage fluctuations at the primary (input) side are passed on to the secondary (output) side, causing a ripple that is detrimental to any VRLA battery.

The efficiency of a 50 Hz charger is about 75%. That is, 25% of the energy used is lost as it is converted into heat.

High-frequency Chargers

The input mains voltage is rectified and then converted into a high operating frequency (50kHz) by a high-frequency chopping circuit. This high-frequency input is then passed through a transformer and rectified to the correct DC voltage with only a negligible ripple. Because of this high frequency, the transformation can be done with a small ferrite transformer. This makes HF chargers suitable for all types of lead-acid batteries.

High-frequency chargers have an efficiency of over 90%, which makes them very cost-effective. Because an HF charger does not have a heavy transformer, its weight is generally a quarter to one-fifth of that of a similar conventional charger. This allows for wall mounting, thus increasing floor space and safety.

Microprocessor-controlled chargers

A charging voltage of 13.8V is sufficient to charge a battery without causing damage by overcharging. This is exactly what simple (and therefore cheap) chargers do. Unfortunately, the battery will not attain more than 75% SOC (state of charge).

Microprocessor-controlled chargers’ control both the current and the voltage they provide when charging a battery. This is done in several steps, taking into account battery condition and often even ambient temperature, thus allowing maximum charge without causing any damage. Temperature-controlled charging is especially important for gel batteries.

Hybrid Chargers

Chopper chargers use ferro resonant transformers combined with switching technology at the secondary end. This allows for very high charging rates: a traction battery can be charged in as little as one hour – albeit reducing battery life cycle by 30%.

This solution enables multi-shift operations without spare batteries and battery changing. In terms of safety time and total cost of ownership, the combination of an expensive chopper charger plus one battery pack versus one HF charger and two battery packs is an alternative that should be seriously considered.

Microtex GoodFresh Forklift battery chargers are available in a wide range & supplied promptly

                                                Microtex GoodFresh Standard Chargers- Type 1

Charger

Volts

Amps

Capacity Ah

Three Phase

Dimensions

Single Phase

Dimensions

Model

Volt (V)

(A)

10hrs

12hrs

 (A)

Box

(A)

Box

MEV2460

24

60

300

380

3

S

\

\

MEV2480

80

420

540

4

S

12

S

MEV24100

100

520

680

5

S

17

S

MEV24120

120

600

800

6

S

20

S

MEV24140

140

720

900

7

S

24

S

MEV24160

160

870

1000

8

S

\

\

MEV24180

180

900

1125

9

S

\

\



















MEV36080

36

80

430

560

6

S

20

S

MEV36100

100

520

680

7

S

25

S

MEV36120

120

600

800

9

S

30

S

MEV36140

140

720

900

10

S

34

S

MEV36160

160

870

1000

12

S

\

\

MEV36180

180

900

1125

13

S

\

\



















MEV48060

48

60

300

380

6

S

20

S

MEV48080

80

430

560

8

S

27

S

MEV48100

100

520

680

10

S

33

S

MEV48120

120

600

800

12

S

39

S

MEV48140

140

720

900

14

S

\

\

MEV48160

160

870

1000

16

S

\

\

MEV48180

180

900

1125

22

S

\

\

MEV48200

200

1100

1250

28

S

\

\



















MEV72080

72

80

430

560

12

S

26

S

MEV72100

100

520

680

15

S

32

S

MEV72120

120

600

800

18

S

39

S



















MEV80080

80

80

430

560

13

S

42

S

MEV80100

100

520

680

16

S

54

S

MEV80120

120

600

800

19

S

\

\

MEV80140

140

720

900

23

S

\

\

MEV80160

160

870

1000

27

B

\

\

MEV80180

180

900

1125

34

B

\

\

MEV80200

200

1100

1250

39

B

\

\

MEV80240

240

1200

1400

45

B

\

\

Note:



Box S

374x514x856mm



Box B

561x623x860mm



The Charging capacity may vary based on factors such as temperature, input power supply and state of charge of battery

                    Microtex GoodFresh Standard Chargers- Type 2

Charger

Volts

Amps

Capacity

Three Phase

Dimensions

Single Phase

Dimensions

Model

Volt (V)

Amp (A)

10h

12h

(A)

Box

(A)

Box

MSE2460

24

60

300

370

3

C

\

\

MSE2480

80

420

500

4

C

12

S

MSE24100

100

500

600

5

C

17

S

MSE24120

120

600

430

6

C

20

S

MSE24140

140

720

900

7

S

\

\

MSE24160

160

870

1000

8

S

\

\

MSE24180

180

900

1125

9

S

\

\

MSE36080

36

80

420

500

6

C

20

S

MSE36100

100

500

600

7

C

25

S

MSE36120

120

600

730

9

C

30

S

MSE36140

140

720

900

10

S

34

S

MSE36160

160

870

1000

12

S

\

\

MSE36180

180

900

1125

13

S

\

\

MSE48060

48

60

300

370

6

C

20

S

MSE48080

80

420

500

8

C

27

S

MSE48100

100

500

600

10

C

33

S

MSE48120

120

600

730

12

C

39

S

MSE48140

140

720

900

14

S

\

\

MSE48160

160

870

1000

16

S

\

\

MSE48180

180

900

1125

22

S

\

\

MSE48200

200

1100

1250

28

S

\

\

MSE72080

72

80

420

480

12

C

26

S

MSE72100

100

500

600

15

C

32

S

MSE72120

120

600

730

18

C

39

S

MSE80080

80

80

420

480

13

C

42

S

MSE80100

100

500

600

16

C

54

S

MSE80120

120

600

800

19

S

\

\

MSE80140

140

720

900

23

S

\

\

MSE80160

160

870

1000

27

B

\

\

MSE80180

180

900

1125

34

B

\

\

MSE80200

200

1100

1250

39

B

\

\

MSE80240

240

1200

1400

45

B

\

\

Note:



Box C

400x600x607mm



Box S

374x514x856mm



Box B

561x623x860mm



The Charging capacity may vary based on factors such as temperature, input power supply and state of charge of battery

                                Microtex GoodFresh Fast Chargers

Model

Voltage

Amp Range (A)

KW

Amp (A)

Vac

8h

10h

12h

Module

M2450

24 V

10 – 50 A

1,7

8

220-240 Vac

360

420

480

MK1N

M24100

10 – 100 A

3,4

16

720

840

960

MK2N

M4825

48 V

5 – 25 A

1,7

8



180

225

275

MK1N

M4835

5 – 35 A

2,4

10

220-240 Vac

250

300

350

MK1N

M4850

10 – 50 A

3,4

16

360

420

480

MK2N

M4870

10 – 70 A

4,8

20

500

600

675

MK2N

M4880T

40 – 80 A

5,3

9

400 Vac

550

650

775

TK1N

M48160T

80 – 160 A

10,6

18

1150

1300

1550

TK2N

M48240T

120 – 240 A

15,9

27

1750

2000

2300

TK4N

M48320T

160 – 320 A

21,2

36

2300

\

\

TK4N

M8050

80 V

10 – 50 A

5,5

10

400 Vac

360

420

480

TK1N

M80100

30 – 100 A

11

20

720

840

960

TK2N

M80150

90 – 150 A

16,5

30

1080

1260

1440

TK4N

M80200

120 – 200 A

22

40

1440

\

\

TK4N

                              Microtex High Frequency Chargers

Charger

Volts

Amps

Input VAC

Capacity Ah



Type

(V)

 (A)

Amp (A)

Vac

8h

10h

12h

Module

MNR1210

12 V

10 A

2

95-265 Vac

60

80

100

0

MONR1210

10 A

2

60

80

100

0

MN1215

15 A

2

180 – 265Vac

90

120

150

1

MON1215

15 A

2

90

120

150

1

MN1220

20 A

2

120

160

200

1

MON1220

20 A

2

120

160

200

1

MN1225

25 A

2

150

200

250

2

MON1225

25 A

2

150

200

250

2



MNR2410

24 V

10 A

4

95-265 Vac

60

80

100

0

MONR2410

10 A

4

60

80

100

0

MN2415

15 A

3

180 – 265Vac

90

120

150

1

MON2415

15 A

3

90

120

150

1

MN2420

20 A

4

120

160

200

1

MON2420

20 A

4

120

160

200

1

MN2425

25 A

5

150

200

250

2

MON2425

25 A

5

150

200

250

2

MNR2430

30 A

10

85-265 Vac

180

240

300

3C

MONR2430

30 A

10

180

240

300

3C

MNB2435

35 A

6

180 – 265Vac

210

280

350

4

MONB2435

35 A

6

210

280

350

4

MNB2440

40 A

7

240

320

400

4

MONB2440

40 A

7

240

320

400

4

MNB2450

50 A

10

300

400

500

4

MONB2450

50 A

10

300

400

500

4

MN3610

36 V

10 A

3

180 – 265Vac

60

80

100

2

MON3610

10 A

3

60

80

100

2

MN3615

15 A

4

90

120

150

2

MON3615

15 A

4

90

120

150

2

MN3620

20 A

6

120

160

200

2

MON3620

20 A

6

120

160

200

2

MN3625

25 A

7

150

200

250

2

MON3625

25 A

7

150

200

250

2

MN3630

30 A

8

180

240

300

3

MON3630

30 A

8

180

240

300

3

MON3650

50 A

14

300

400

500

5

MN3650

50 A

14

300

400

500

5

MN4810

10 A

4

60

80

100

2

MON4810

10 A

4

60

80

100

2

MN4815

15 A

5

90

120

150

2



















MON4815

48 V

15 A

5

180 – 265Vac

90

120

150

2

MN4820

20 A

7

120

160

200

2

MON4820

20 A

7

120

160

200

2

MN4825

25 A

9

150

200

250

2

MON4825

25 A

9

150

200

250

2

MNB4830

30 A

11

180

240

300

4

MONB4830

30 A

11

180

240

300

4

MNB4835

35 A

13

210

280

350

4

MONB4835

35 A

13

210

280

350

4

MN4840

40 A

15

240

320

400

5

MON4840

40 A

15

240

320

400

5

MN4850

50 A

16

300

400

500

5

MON4850

50 A

16

300

400

500

5

MNB4880-T

80 A

10

400 Vac

450

560

750

7



MN7220

48V

20 A

11

400 Vac

120

160

200

3

MON7220

20 A

11

120

160

200

3

MN7225

25 A

14

150

200

250

4

MON7225

25 A

14

150

200

250

4

MN7230

30 A

16

180

240

300

6

MON7230

30 A

16

180

240

300

6

MN7235

35 A

19

210

350

420

6

MON7235

35 A

19

210

350

420

6



















MON8022

80 V

22 A

14

180 – 265 Vac

130

180

220

4

TYPE CODE :

















MN > Supplied without accessories

MNR > Possibility to change curve via Infrared

MNB > Possibility to change curve via Bluetooth

MON > Supplied with On-board accessories

MONR> Possibility to change curve via Infrared

MONB > Possibility to change curve via Bluetooth

Forklift chargers are supplied with 7 days

  • Chargers are packed suitably for safe transport
  • Standard 1 year for all supplies

Get in touch, now!

Microtex timeline

May, 1969

Established as mfrs of PVC Battery Separators & PT Bags

Mr A Govindan our Founder & first generation entrepreneur, establishes Microtex pioneering the manufacture of battery separators & Tubular Bags which were import substitutes at the time. He obtained a patent for the Pluri Tubular Bags in 1975

May, 1969

Feb, 1977

Started exporting Traction Batteries to USSR

Not many companies in the world have the rich experience of manufacturing & exporting traction batteries from 1977. Microtex have supplied over 4500 traction batteries a year during the period

Feb, 1977

March, 1985

Approved for supply of 2V batteries for Telecom

Started supplies of 2V flooded LMLA batteries to the state owned P&T

March, 1985

April, 1994

Approved for supply to Indian Railways

Batteries for rolling stock applications & stationary batteries for signaling applications.

April, 1994

July, 2003

launched INtelliBATT 12v TT inverter batteries

Highly successful Microtex 12V flooded batteries for the huge inverter battery markets

July, 2003

Feb, 2005

Started manufacture of VRLA Battery & TSEC approved

Microtex establishes manufacture of VRLA batteries for various applications. Obtained TSEC approvals for VRLA batteries from 2V 200Ah to 2V 5000Ah in a very short time. Supplies to BSNL, Idea, Airtel, Indus Towers, Huawei, Bharti infratel, Viom, etc

Feb, 2005

Apr, 2006

Dr Rusch, leading battery scientist joins Microtex

Dr Wieland Rusch, battery expert from Germany & inventor of copper stretch metal submarine batteries, joins Microtex to upgrade & bring to world class designs for the complete range of batteries including traction battery & developed the complete range of OPzS & OPzV Gel battery. Microtex was the first company to launch Gel batteries in India.

Apr, 2006

Apr, 2008

Started production of OPzS & OPzV battery

Microtex started supplies of 2V OPzS Batteries to Nuclear facilities in India & exported Gel batteries for various applications including telecom, solar energy storage

Apr, 2008

Mar, 2011

Dr McDonagh joins Microtex as CTO

Dr Michael McDonagh with his rich manufacturing experience in various leading battery companies, established strong process controls in Microtex

Mar, 2011

April, 2018

Microtex offers forklift chargers

To cater to the requirements of our traction battery customers, Microtex launched the GoodFresh series of forklift battery chargers to be compatible with our Limitless forklift batteries

April, 2018

2021

Fast forward to today

Microtex is legendary for its high quality batteries & reputed in the battery industry for its good & ethical business practices. Microtex manufacturing plant is environment friendly, involves employees & ensures their welfare is first. Microtex is probably one of the few companies worldwide to manufacture in house, the entire battery from the lead alloys, battery containers, the grid castings, plate manufacture, assembly & testing of batteries to world class standards.

2021

The perfect solution if you want forklift battery chargers

Get in touch, now!


Microtex GoodFresh Battery Charger Applications

Forklift battery charger usage applications for stacker battery

For Charging Stacker batteries

Forklift battery charger usage applications for forklifts

Forklifts

Forklift battery charger usage applications 4

Reach Trucks

Forklift battery charger usage applications 3

Mining locomotive batteries

How many amps does it take to charge a forklift battery? Read an in depth guide on battery charging here

Send us an inquiry, now.

Our happy customers

All logos belong to the respective companies & Microtex is not associated with the brands

Microtex Reputation. Highly demanding customer base

  • Nuclear Power Corporation of India
  • National Hydro Power Corporation
  • Electricity substations & Power Generating Stations across India
  • Indian Railways
  • Oil companies
  • Telecom operators

Get a quote, Now!

Established in 1969
Exporting Batteries to 43 countries since 1977!

Microtex Aerial view

Battery manufacturing plant in India

What Microtex customers experience

5/5
“This is to certify that Microtex Traction battery types 36v 756Ah supplied by you in the years 2012 & 2018 are working in good condition and performance is satisfactory. Both batteries are fixed in Crown reach trucks. Microtex provides good service support.”
Snowfield Cold Storage - Tamil Nadu
5/5
“You have an amazing factory and warm workplace and culture! Keep it up!.”
Parth Jain, Unified Global Tech (I) P Ltd
5/5
“This is to certify that we have received 5000Ah VRLA cells of Microtex Energy Pvt Ltd on 27-7-2016 and are installed in our exchange at Rajendra Nagar Bareilly. These cells are working satisfactorily and the performance is very good/ excellent..”
SDE/DE - BSNL Bareilly

Related Batteries

Send us an inquiry, now.

Related Battery Blog Articles

Equalizing Charge Microtex

Equalizing charge in lead acid battery The intention of equalizing charge is to bring the on-charge voltage of a lead-acid battery to gassing levels so …

Read More →
Microtex Guide to forklift battery

Are you afraid your forklift battery will fail when you need it the most? Have you ever had a moment when you thought your forklift …

Read More →
Microtex Neos Battery charger

Battery Charger – charging a lead acid battery A battery can be defined as an electrochemical device that can convert chemical energy within its active …

Read More →
