12V AGM BATTERY
Microtex SMF Battery for inverter
at the best 12V SMF battery price in India
Microtex have been manufacturing SMF battery in India since 2007 for Telecom, Solar & Standby battery applications meeting Global standards.
What is SMF Battery?
An SMF battery or also called Valve Regulated Lead Acid (VRLA) battery is simply a lead-acid battery in which the electrolyte has been immobilised in order to recombine hydrogen and oxygen. It has a sealed construction with pressure release valves to prevent gases from escaping, it is this which gives it its name.
What is SMF Battery Technology?
Because the electrolyte is no longer in a fluid state, due to being absorbed into a finely textured glass mat, the gases produced are not free to form bubbles and rise to the surface of the electrolyte. Instead, they are trapped in the immobilised matrix and forced to travel to the opposite poles by the pressure gradient produced when on charge. In a free liquid, this would be impossible.
What is AGM battery? What is AGM Battery technology?
AGM is the short form for Absorbent Glass Mat separator. It is in this separator which is made from 100% glass and feels like blotting paper, that the acid is stored.
AGM Battery uses:
12V AGM Batteries are suitable for Solar battery backup, UPS & Inverter systems, Switchgear & controls, Banks, Insurance & Office power backup, Traffic management systems
SMF Battery uses:
- SMF Battery for inverter
- SMF Battery for UPS
- SMF Battery for Solar
- SMF Battery for home inverters

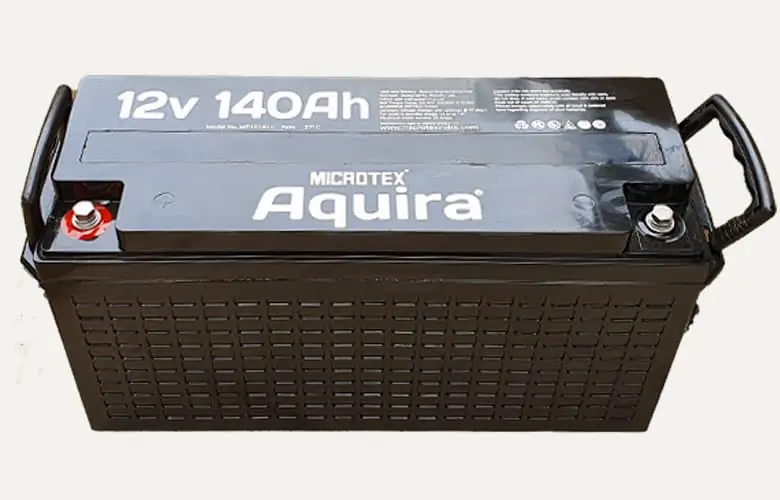

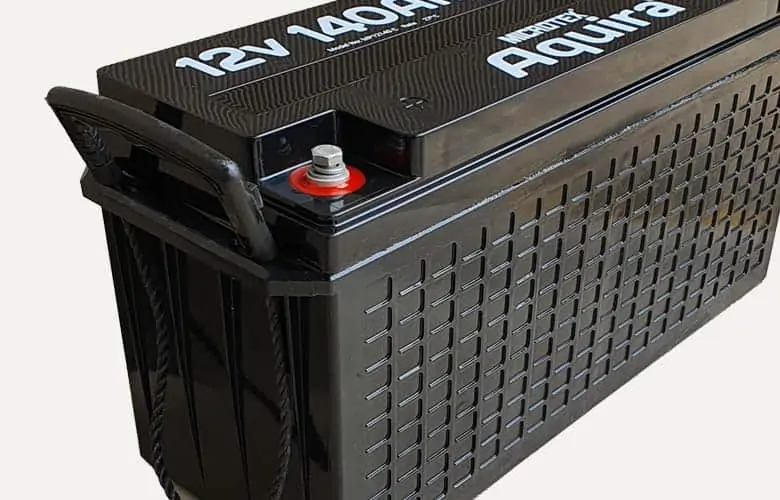

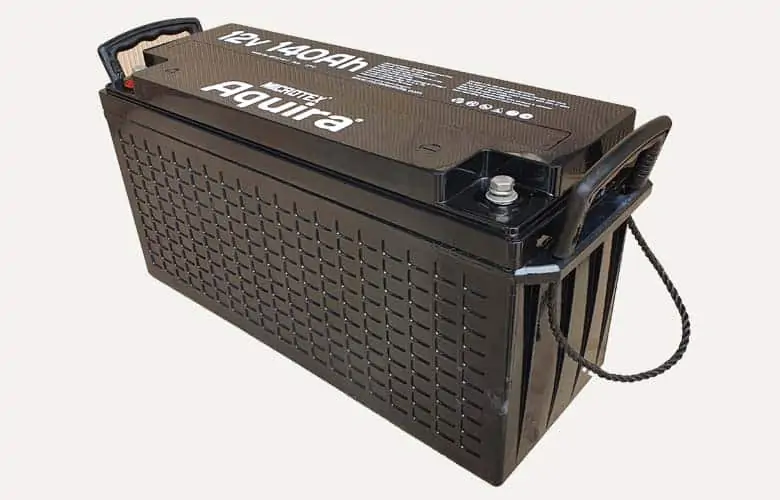

Microtex 12v AGM battery – valve-regulated (VRLA) with high power density using absorbent glass mat are available in a wide range from 70Ah to 200Ah. VRLA 12v AGM Battery for the UPS & Inverter industry from Microtex are sealed maintenance-free batteries and come with assured quality. Microtex incorporates battery research and design from years of its own experience and that of reputed European Battery Scientists. Microtex 12v AGM battery series – delivers trouble-free performance with an ultra-long life on float applications. They are supplied in a charged condition ready for use.
What is VRLA SMF Battery? What is difference between VRLA and SMF battery? what does AGM stand for?
VRLA stands for Valve Regulated Lead Acid battery & SMF stands for Sealed Maintenance Free. Both are characteristics of a 12V AGM Battery. AGM stands for Absorbent Glass Mat separator.
12v SMF battery specifications, SMF Battery technology
- Microtex 12V SMF VRLA batteries in ABS containers are available from 12v 70Ah to 12v 200Ah.
- 12V AGM Battery Life: > 10 years in standby float operation @25°C – 1450 cycles at 20% depth of discharge
- Maintenance-Free: No topping up water during the operational life
- Operating temperatures: -20 deg c to +55 deg c
- Self-discharge: Approx 1% per week at 25°C
- Shelf life without recharge: May be stored up to 6 months
- 12V AGM Battery internal resistance typically 3.3mΩ
- Operational temperature: -20°C to 45°C, recommended 10°C to 35°C, short time 45°C to 55°C
- Reliability: Peace of mind that the AGM 12V SMF battery backup power supply will remain constant; longer power backup discharges during a power outage
- German Design: With balanced active materials delivers battery capacity that meets international specifications
- Durability: Thicker gravity cast grid construction in popular European DIN design, for high-density performance with increased life
- Special insulators for plate ends: eliminates shorting
- Price: A realistic, and competitive 12V SMF battery price in India
- Delivery: On time, every time; Guaranteed
- After-sales: We are a 12V SMF battery manufacturer in India with a fully committed, PAN India customer care service is available a phone call away to solve any issue quickly and efficiently
Made in India with German Technology
- Leak-Proof terminals pole bushing. Our special design makes for a complete seal & ensures no leak of either gases or acid throughout the SMF battery life time

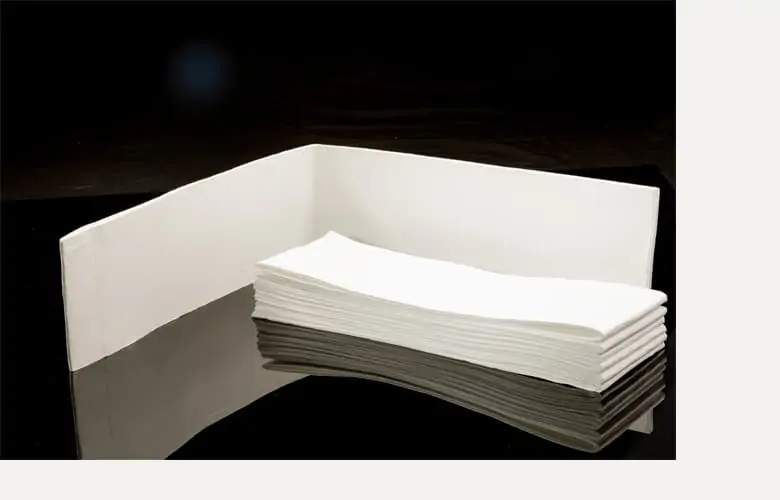

- High-quality Resilient Absorbent Glass Mat separators (AGM) ensure cells will not dry out
- (AGM) Battery separators are C wrapped to eliminate shorting
- Modular design for ease of installation & stacking flexibility
- Calcium lead alloy grids provide for superb oxygen recombination & maintenance-free performance
- Large terminal post design: Strong posts with good conductivity & mechanical strength. Threaded, lead-tin brass or copper inserts give increased conductivity & better high rate discharge performance, without heating up of terminals
- A larger contact area for better conductivity inserts eliminates melting of terminal
- Fire-retardent (FR) Grade PPCP containers, covers & post seal: Fire safe
- Low internal resistance values for each cell
- A dedicated design team for customer service to help you through selection & sizing options
- Microtex 12V 100Ah SMF battery price in India is the most competitive
- The combination of Tin-calcium lead alloy tubular positive plates and lead selenium with low antimony alloys deliver the best performance. in VRLA battery type technology for ultra-long battery life & performance.
- VRLA Battery ventilation requirements: release gases under controlled valve regulation that require minimum ventilation unlike flooded batteries
- Seismically qualified battery racks are available
For the Best 12V AGM Battery price in India
Request a quote, now
Microtex 12V AGM Battery datasheet, technical information, & downloads
Microtex 12V AGM batteries are available from 70Ah to 12v 200Ah in ABS containers & ABS covers & are sealed maintenance free batteries.
| Positive plate | Flat plate with special calcium tin alloy |
| Negative plate | Flat pasted with nanocarbons & special additives |
| Separators | Highly resilient Absorbent Glass Mat battery separators |
| Container | Very strong ABS (Acrylo Nitrile Butadeine Styrene) Containers |
| Cover/lid | ABS |
| Electrolyte | Sulfuric acid with a density of 1.26 kg/l, immobilized in highly absorbent AGM separators |
| Specific gravity | 1.260SG @ 25ºC |
| Terminal pillar post | 100% gas & electrolyte-tight, with EPDM bush design with M8 Tin plated brass inserts |
| Vent valve | Valve Regulated Vent Plugs from Europe, high precision opening & closing pressures with explosion inhibiting ceramic |
| Operating temperature | -20ºC to 55ºC optimum recommended temp is 10ºC to 30ºC |
Full container 12V AGM batteries are usually delivered in 30 days. We ensure that you get factory fresh charged batteries for your order every time.
- 12V AGM Batteries are supplied in export worthy carton box packing & palletized for easy handling.
- Standard 1 year for all supplies
Microtex AGM 12V SMF Battery electrical performance are in compliance with stringent international standards & comply with:
- JIS C 8702-1
- IEC 60896 Part 21-22
- IS 15549:2005 with Amndt No 1
Our labs are equipped with state-of-the-art high-quality life-cycle testers from world-class suppliers Bitrode and Digatron to ensure our batteries stand meet the required electrical parameters to the test of time.
Please click to view certificate
Microtex 2V AGM VRLA batteries are offered in robust Polypropylene (PPCP) containers housed in Steel modules @ c10 & dimensions:
| Srl No | Battery Model | Battery Volt | Nominal | Nominal | Nominal | Dimensions in mm | Wet SMF Weight in Kgs(Appx) | ||
| Capacity 20hr | Capacity 10hr | Capacity 1hr | |||||||
| rate-Ah | rate-Ah | rate-Ah | Length | Width | Height | + – 5% | |||
| 1 | MP12 70 | 12 | 70 | 65 | 43 | 309 | 168 | 211 | 25.5 |
| 2 | MP12 90 | 12 | 90 | 82 | 54 | 309 | 168 | 211 | 26.5 |
| 3 | MP12 100 | 12 | 100 | 93 | 65 | 329 | 174 | 214 | 29.5 |
| 4 | MP12 120 | 12 | 120 | 110 | 78 | 407 | 173 | 235 | 34.5 |
| 5 | MP12 150 | 12 | 150 | 138 | 98 | 483 | 170 | 241 | 43.5 |
| 6 | MP12 200 | 12 | 200 | 180 | 120 | 522 | 240 | 241 | 61.5 |
- 12V AGM Batteries are supplied in ABS containers suitably packed for distant transport within India or export worthy packing
- Inter battery jumper cables (Opt)
- Lead-plated passivated SS fasteners
- sulfation protection – petroleum jelly sachet
- Instruction & maintenance manual
- Charging manual & user record book
- Internal test certificate – 3rd party NABL accredited lab testing available at cost
- Peace of mind with our dedicated all India service support
12V AGM batteries from Microtex comes with trouble free performance. Annual checking of battery voltage, pilot battery voltage & temperature, equalizing charge & visual inspection for any damages or loose connections is all the maintenance you require for these high performance AGM batteries.
Often taken for granted until things go wrong, batteries require some small maintenance and care. 12V AGM Batteries need an equalizing charge once a year to prevent capacity variation and to bring up all the cells up to the same voltage. Leave this important task to the battery experts at Microtex
Microtex will be happy to maintain your battery banks and help protect your investment. Call us to schedule a free health check up of your 12V AGM battery banks +91 9686 448899
If sizing of the 12V VRLA batteries are required, we shall be happy to assist you with the correct calculations, please provide the following details:
- Total load of the system
- Total DC voltage of the system
- Number of backup hours required
- Mean ambient temperature
Please provide us with the following information to ensure that you receive the right battery for years of great performance:
- What is the system voltage & capacity of the cells
- Which specification do you need the batteries to conform to? IS spec, IEC spec or DIN spec?
- Number of cells per system/bank
- Are maintenance tools required, if yes please name the items needed
- Are stands required, If so Teak/Sal wood, mild steel, galvanised steel or FRP?
- Do you require the stands to be seismically qualified?
- Is electrolyte required for first filling or do you have access to good quality tested electrolyte?
Please click the link below to view:
Microtex have been manufacturing & exporting AGM VRLA batteries since 2007
for various backup battery applications meeting International norms
Microtex timeline
Why choose a Microtex 12V AGM battery?
12V AGM BatteryTechnical information & characteristics
- Designer lead Calcium alloys in combination with high tin, for positive electrodes & special additives for negative electrodes to prevent failure due to corrosion
- Special electrodes with DIN design provides better & faster conductivity to the terminals minimising internal resistance losses
- Lead Tin Calcium alloys with special grain refiners, prevent grid growth & corrosion
- Hardened lead alloy with brass insert terminal posts – provide faster conductivity and fail-proof connections eliminating terminal post corrosion
- Accurately balanced active materials ensure overcharge tolerance giving you long life & trouble free performance
- Cured & formation processed plates to doubly ensure full conversion. 12V AGM VRLA Batteries are fully charged & ready to use, supplied with factory pre-formed plates. This ensure for reliable performance and no excess cycling required in the field to obtain rated capacity. Saves time for critical users.
- High-quality vent valves with precise opening & closing pressures. Fail-proof design to release and reseal instantly. Prevents accidental ingress of unwanted air & to effectively transport oxygen from the positive plate to the negative plate through the pressure assisted transport mechanism
- High quality M8 threaded brass inserts, or hardened lead for terminal posts, with adequate current carrying capacity
12V SMF battery the failsafe battery, with German technology
- Robust & sturdy ABS (Acrylonitrile butadiene) containers with rugged honeycomb square structure design for added strength – does not bulge in service
- Impact resistant ABS cover with large polarity indication enhances cell safety and bright colours for easy visual of terminal polarity

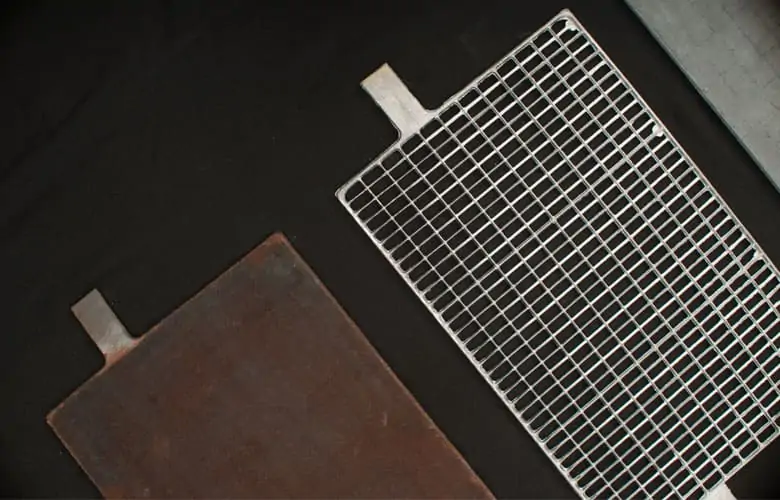

- Thicker gravity casted grids for long life, & thicker busbar ensure more lead = more life
- Resilient high-purity AGM separators
- Factory Charged Batteries – No fuss no mess. Use straight away, saves time
- Microtex invests years of in-house experience. Our world-renowned battery scientists and experts continuously test and improves our products. Because of this, you’ll receive a more efficient battery than you are likely to buy elsewhere
features and
- 12v 50ah deep cycle sealed agm battery. Range available from 12v 70Ah to 2v 200Ah in ABS containers with a 10 year designed life @ 25 deg c
- Trouble-free performance with a leak-proof terminal post seal
- Maintenance free - No water topping-up required
- We ensure our 12V AGM battery price in India is among the most competitive in the industry
with more benefits for you
- Excellent Reserve Capacity- Designed to sustain PSoC up to six months
- Higher charge efficiency = ampere-hour efficiency of over 90%
- Starved electrolyte condition ensures no stratification of acid & failure due to partial state of charge (PSoC)
- High-capacity AGM battery with deep-discharge characteristics for cyclic performance
The perfect solution if you want 12V SMF battery technology
What is the cost of a 12V AGM battery bank?
Experience shows that 80% of 2V AGM VRLA batteries last only 2 to 3 years.
Don’t let that happen! Choose long-lasting deep-cycle batteries from Microtex.
- Long service life – 10 years designed life – best return on investment cost
Dependable lead acid battery capacity so you can get complete performance. Your return on investment in Microtex 12V AGM batteries ensures the long term cost is way lower.
Why Microtex Batteries are made better?
Microtex produces the specially designed lead alloys, lead oxides, grid castings, pasted plates, injection-moulded containers, multi-tubular gauntlets, PVC separators in house, and produces the complete battery using state-of-the-art industry-standard battery making machinery. Our batteries are built with proven designs and undergo complete life cycle testing to international norms before they are offered to the market. The electrical lab is complete with high-quality LCT from world-class suppliers Bitrode and Digatron.
Microtex 12V AGM Battery Uses/Applications
Microtex 12V SMF Battery for Hospitals
High-temperature VRLA batteries with high-power density ensure better ROI

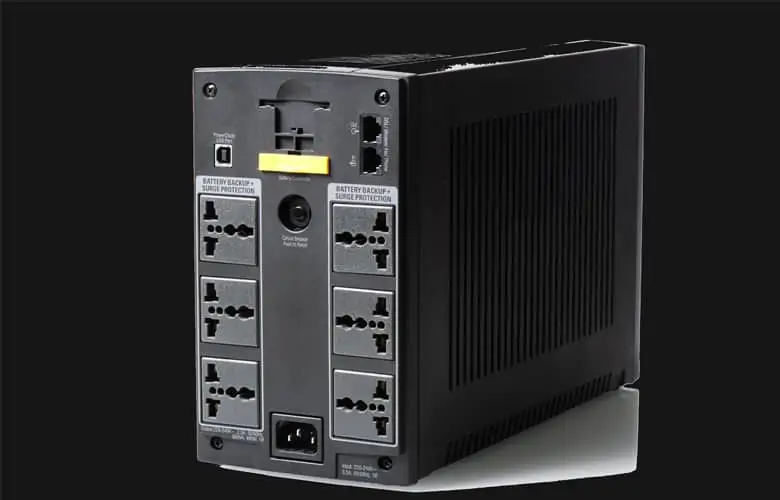

Microtex 12V SMF Battery for Large & Small UPS
Can we use SMF battery for inverter? Yes. As well as for UPS systems
SMF Battery for offices, Banks, Insurance
12V AGM battery banks for emergency battery power backup in small & large offices. Service industry cannot afford power outages & rely on our 12V AGM batteries for uninterrupted power supply.
Microtex SMF Battery for Home Solar Inverter
Maintenance-free SMF battery for home solar battery requirements. Microtex 12V AGM Battery for Home Solar inverter applications
12V AGM Batteries for C&I customers, off-grid solar home users, Data centres, Telecommunications, large UPS systems, Nuclear power generation plants, Thermal power stations, Hydro-electric power plants, Electricity substation battery requirements, Large Solar photovoltaic systems, Oil & gas industry, Petrochemical plants, Controls & Switchgear & controls
Send us an inquiry, now.
Why Microtex 12v AGM Battery?
German Designs - Made for Indian conditions
Microtex batteries are designed by Dr Wieland Rusch a leading battery scientist & inventor of the copper stretch metal submarine battery design.
Comparable to any leading international brands of batteries – our designs match with the best in the world.
Established in 1969, Microtex is known for its legendary quality
Microtex batteries are known the world over for its dependable & reliable battery performance
Unlike competitors, Microtex makes the complete battery & all its components in house
Microtex produces in house, the specially designed lead alloys, lead oxides, grid castings, pasted plates, injection-moulded containers, multi-tubular gauntlets (PT Bags), PVC separators and produces the complete battery using state of the art industry standard battery making machinery.
Our happy customers
All logos belong to the respective companies & Microtex is not associated with the brands
Microtex Reputation. Highly demanding customer base
- Nuclear Power Corporation of India
- National Hydro Power Corporation
- Electricity substations & Power Generating Stations across India
- Indian Railways
- Oil companies
- Telecom operators
Get a quote, Now!
Established in 1969
Exporting Batteries to 43 countries since 1977!
Battery manufacturing plant in India
What Microtex customers experience
What is the difference between AGM and GEL batteries?
| Comparision of AGM and flooded Battery | |
| 12 AGM VRLA Battery | 12V flooded Batteries |
| Nominal 12 volts | Nominal 12 volts |
| Positive plate Alloy is made from Lead Calcium alloys | Positive plate Alloy is made from Antimony lead alloys |
| Positive electrode is flat pasted plate | Positive electrode is usually tubular plate |
| Electrolyte is immobilized in Absorbent Glass mat separators in a starved electrolyte condition | Flooded electrolyte |
| Maintenance-free no Topping up with water | Requires topping up with water |
| The Plates are gravity casted | The Positive grid is pressure die casted |
| Special Leak-proof sealed maintenance free design | Vented opening for water topping |
| Battery can be installed in horizontal or vertical position | Battery can be installed in vertical position only |
| The immobilized electrolyte has the advantage of no acid stratification and no failures due to the partial state of charge. | Stratification can occur in tall cells |
| Self discharge is less than 1% per week | Self discharge is less than 1% per week |
| Design float Life is 10 years | Design float Life is 15 plus years |
Microtex is the Best 12V AGM battery
