End on Generation
EoG diesel genset starter battery
What is EOG in train?

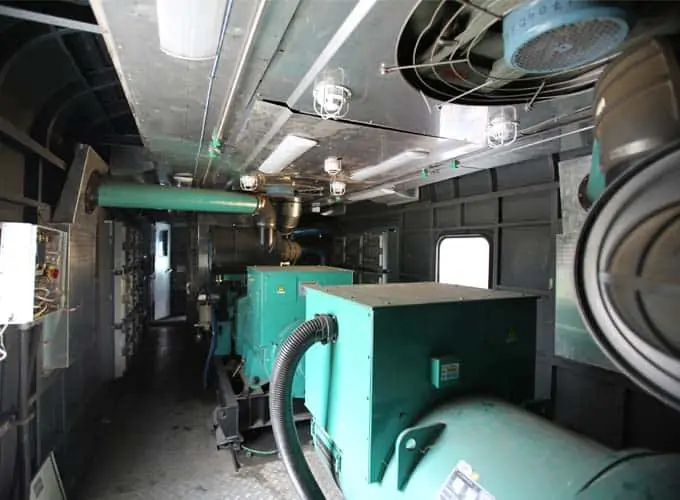

In end on generation power supplied by 2 Genset engines which use heavy-duty 8v 290Ah Battery for starting the diesel engines.
Power car 24V 290Ah battery
Trusted by Indian Railways
Why Microtex are considered as leading
End on Generation Battery Manufacturers
German Designs - Made for Indian conditions
Microtex batteries are designed by Dr Wieland Rusch a leading battery scientist & inventor of the copper stretch metal submarine battery design.
Comparable to any leading international brands of batteries – our designs match with the best in the world.
Established in 1969, Microtex is known for its legendary quality
Microtex batteries are known the world over for its dependable & reliable battery performance
Unlike competitors, Microtex makes the complete battery & all its components in house
Microtex produces in house, the specially designed lead alloys, lead oxides, grid castings, pasted plates, injection-moulded containers, multi-tubular gauntlets (PT Bags), PVC separators and produces the complete battery using state of the art industry standard battery making machinery.
Designed by Dr Wieland Rusch of Germany – Manufactured with precision and pride in India, we make the complete End on Generation batteries and all its components in house ensuring a high level of quality without having to depend on outside vendors.
What is end on generation?

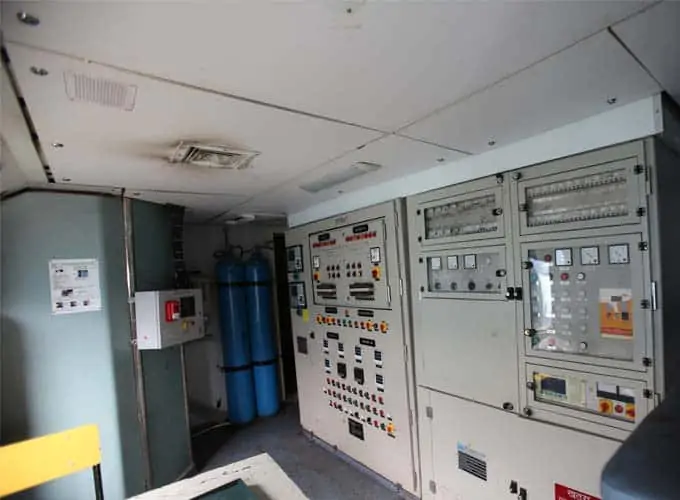

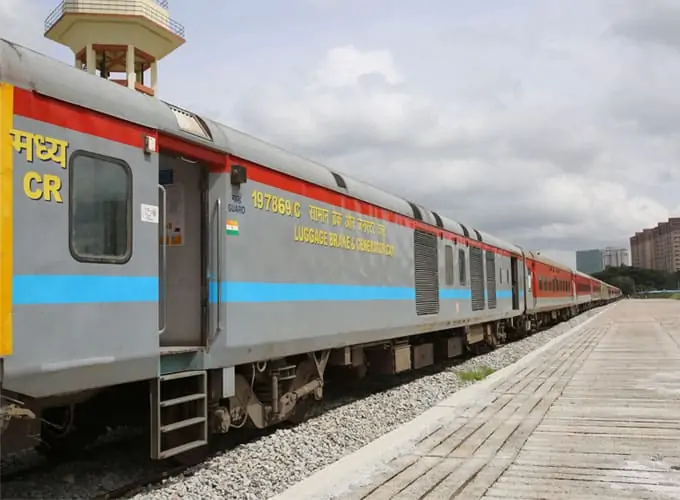

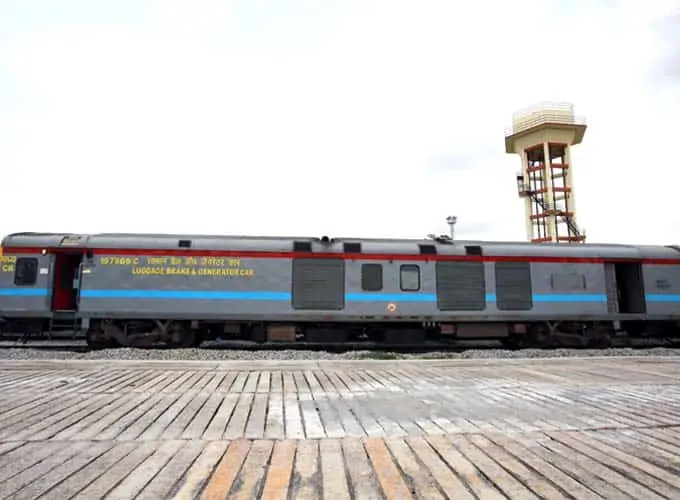

End on Generation in Railways (EOG) is the system used on fully air-conditioned Rajdhani and Shatabdi trains. The system comprises two power cars per train. Each power car has two DG sets and each DG set is rated at 300 kW. These are mounted inside the power car or the entire power car coach which is dedicated to these power plants. The power generated by these DG sets is utilized for electrical loads of the train.
What is EOG in train? Why end on generation is provided?
In EOG system, the electrical load (i.e. load of lights, fans and air conditioning, pantry etc. referred to as “Hotel Load”) in the coaches of Rajdhani and Shatabdi Express trains are fed from the power cars placed at either end of the rake. Each power car is installed with 2 Diesel Alternator (DA) sets generating a 3-phase (4 wires) power supply of 750 Volts 50Hz and the same is transmitted to the entire rake through two parallel cables feeders termed as Feeder-A and Feeder-B, running through the whole length of the train. This electric power supply is tapped at each coach through a 50 KVA transformer in Conventional Coaches and 60 KVA transformers in LHB coaches and is converted to 415 volts for feeding the equipment working at this voltage and further transformed down to 110-volt AC single-phase for feeding the equipment working at that voltage.
415 V, 3-phase supply is directly used for compressor motors, the condenser fan motors and heaters installed in the evaporator. The evaporator blower motor is fed at 110V, 3-phase ac. 110V ac supply is also provided for lamps and fans by connecting them between line and neutral on the secondary side of this transformer. Since the power cars are placed at either end of the rake, the system is termed as End on Generation (EOG).
Follow this link for end on generation circuit diagram
Microtex End on Generation (EoG) battery suppliers
Microtex offers the most reliable End on Generation batteries in tubular plate technology, meeting recognized RDSO standards. Only tubular plate batteries can offer true deep cycle performance. Read all about tubular plate technology in this link.
Microtex have been manufacturing & exporting batteries from 1977.
52 years of manufacturing experience puts our Railway End on Generation batteries as one of the top EoG battery manufacturers. Designed for deep discharge performance, it is manufactured with special antimony alloys, requiring very less water topping-up. A boon for the power car maintenance team! Available in the required 8V 290Ah battery approved by RDSO and meeting stringent national & international specifications.
Microtex Railway End on Generation battery is made from completely formed plates; & not green plates, formed after assembly.
This is to eliminate any chance of unformed active material in the electrodes.
With Microtex Railway End on Generation batteries, you get:
- Trouble-free performance
- Reduced water topping-up needs, makes you feel it is a waterless battery!
- Faster charge acceptance with nano-carbons!
- High power efficiency – performs through the fairway!
- Longer discharge period – heavy-duty, coupled with deep-cycle capabilities
- Long-life – better return on investment
The TRUTH about how To Choose a Dependable Railway End on Generation Batteries...
even if You Have Been Told All Railway End on Generation Batteries Are Plus Or Minus The Same Thing!
This is to certify that Traction Battery type 48v 470Ah supply by you in the year 2008 is working in Good Condition and Performance is satisfactory. We are getting good service support from Microtex.
This is to certify that Traction Battery type 36v 756Ah supply by you in the years 2012 and 2018 is working in Good condition and performance is satisfactory. Both batteries are fixed in Crown Reach Truck. We are getting good service support from Microtex. Snowfield Cold Storage - Tamil Nadu
At Microtex we believe our customers must get the best Railway End on Generation battery performance & life consistently. To this end, we leave no stone un-turned to ensure that you get a superior EoG battery built with great care & passion.
What sets our End on Generation batteries apart from the rest?
- Designer Low antimony-tin-selenium lead alloys ensure the need for frequent water topping up is substantially reduced – a blessing for the power car battery maintenance team
- Reduced Maintenance requirements: due to the very low antimony design with selenium as grain refiners, the need to top-up frequently is vastly reduced
- Microtex End on Generation batteries are supplied only with woven tubular bags we do not use nonwovens
- Self-discharge: Approx 2-15% per month depending on storage temperature conditions
- Recovery after deep discharge: Very good
- Operational temperature: -20°C to 45°C, recommended 10°C to 35°C, short time 45°C to 55°C
- Microtex grid technology is an alloy of lead, tin, and antimony specifically formulated for use with Microtex NanoPlus Paste with Carbon Technology. The grid formulation provides outstanding structural adhesion between NanoPlus Active Material Paste and the grid frame.Thick high pressure die casted grids at an incredible 150 bar pressure, creates a robust spine grid with reduced corrosion, resulting in enhanced battery performance, longer life, reducing maintenance costs and downtime.
Made in India with German Technology
- Our End on Generation batteries come with Heavy-duty Battery Terminal Connectors designed for the rated capacity without causing terminal melting or connector melting (common failure mode during service)
- High-quality hardened lead alloys used in terminals & connectors, also with brass inserts
- Trouble-free battery performance throughout its 4 year expected life
- A dedicated support team for customer service to help you with the Railway End on Generation battery replacement
- German Design: With balanced active materials delivers End on Generation battery capacity that exceeds RDSO specifications
- Durability: Robust heavy-duty construction, thicker spines, coupled with deep-discharge performance
- Price: A realistic, and competitive Railway End on Generation battery price
- Delivery: fastest 21 days assured on time delivery, every time; Guaranteed
- After-sales: A fully committed, PAN India customer care service is available a phone call away to solve any Railway End on Generation battery maintenance issue quickly and efficiently
If you need End on Generation battery 8V 290Ah, send us an inquiry, now.
Microtex Railway End on Generation Battery Specifications
Microtex offers a heavy duty 8V 290Ah deep cycle End on Generation battery in Hard Rubber Containers or in FRP Containers
Microtex Railway End on Generation batteries are available ex stock. Quantities of 100 batteries & above are usually delivered in 21 days
- Railway End on Generation batteries are dispatched in full lorry loads/small trucks , secured well & is packed suitably for safe transport.
- Microtex ensures safe delivery
- All batteries come with our standard 1 year warranty
Technical Data
Microtex End on Generation batteries meet stringent RDSO Standards and meets electrical performance to comply with:
- Microtex EoG in trains, 8v 290Ah batteries comply with Indian Railways RDSO Specification No ELPS/SPEC/TL/0001-98 Rev 0 Amdt No 1 Dec 2013
Microtex have been supplying EoG in Train 8v 290Ah batteries to the Indian Railways since 1994 & is a highly respected product
Microtex 24v 290Ah battery for Gensets EoG in train power car
Our labs are equipped with state-of-the-art high-quality life-cycle testers from world-class suppliers Bitrode and Digatron to ensure our batteries stand meet the required electrical parameters to the test of time.
Note :
H -Height is upto Terminal
MHR -Monoblock Hard Rubber
PPCP/FRP – Polypropylene Co-polymer cells in Fibre reinforced Tray
All Batteries are supplied in dry un charged condition
The electrical characteristics are nominal indicative value and can vary within ±5.0%.
In case of cells/batteries in Dry and Uncharged condition the initial filling and charging is to be carried out as per the parameters mentioned in Technical data sheet:
| Battery Type | Material Of Container /Lid | Voltage | Capacity in Ah at 270C 10Hr | Overall Dimension in mm | Battery Weight (appx.) Kgs. | Electrolyte Qty (Appx.) in Litres per cell | Initial filling Electrolyte Specific Gravity | Charging Current | |||||
| L +5 mm | W +5 mm | H +5mm | Without Electrolyte | With Electrolyte | Initial Charging rate (Amps) | Initial No. of Hrs. Charging | Normal Charging rate (Amps) | ||||||
| Mi8 290 P | PPCP/FRP | 8 | 290 | 722 | 208 | 465 | 87 | 120 | 7.0 | 1.240 | 15.0 | 75 | 29.0 |
| 8VT 290 MH | MHR | 8 | 290 | 715 | 210 | 455 | 97 | 130 | 7.0 | 1.240 | 15.0 | 75 | 29.0 |
- The discharge shall commence not less than 12 hrs. and not more than 24 hrs. from the completion of a full charge and the battery unit shall be discharged through a suitable resistance at a current I = 0.1xC10 ampere. C10 being the rated capacity. The discharge shall be stopped when the closed-circuit voltage across the terminals falls to 1.80 x n volts, where ‘n’ is the number of cells in series or until the voltage across one cell has fallen down to 1.75 volts.
- At this rate of discharge hourly readings may be taken until the battery unit voltage approaches 1.80V x n volts after which the readings shall be taken every 15 min.
- Two more discharge tests shall be carried out in accordance with Srl No 1 and the result of the test giving maximum AH capacity shall be taken as the 10 hrs. capacity.
- The battery unit shall be charged at a rate recommended by the manufacturer, immediately after each discharge.
- The capacity in ampere hours shall be obtained by multiplying the discharge current by the total time of discharge in hours and the product so obtained shall be corrected to a temperature of 27 deg. C by the following formula:
Ct
C27 = ————-
1 + R(t-27)
Where C 27 = Capacity at 27 deg. C
C t= Observed capacity at t deg. C
t = Average room temp. in deg. C
R = 0.0043 for 10 hr. rate of discharge.
The following method shall be used for determining the maximum ampere hour and watt-hour efficiencies.
- Ampere hour efficiency: A fully charged battery unit shall be discharged at I = 0.1 x C 10 ampere to a voltage
of 1.80 x n volts, careful measurements being made of the exact number of ampere hours delivered. On the charge the same number of ampere hours are put back at the same current. A second discharge shall then be made to the same cut off voltage as before. The efficiency of the battery unit is then calculated as the ratio of the ampere hour delivered during the second discharge corrected to the ampere hour put in during the charge. - Watt hour efficiency: The watt hour efficiency shall be calculated by multiplying the ampere hour efficiency by the ratio of average discharge and recharge voltages shall be calculated from the log sheets for ampere hour efficiency.
- Ampere-hour and watt hour efficiencies shall be not less than 95% and 80% respectively.
- The battery unit shall be charged at the normal charging rate. After charging, the battery unit shall be discharged for one hour at 10 hr. rate.
- The test shall be continued by increasing the discharge current to approx. equal to 1.5 times the value specified in Col.10 in Appendix-C (A1) and after an interval not exceeding 5 min., the current shall be decreased to half the value specified in Col.10 of Appendix-C (A2). The current A1 and A2 in amperes and the corresponding battery unit terminal voltages V1 and V2 in volts, shall be measured simultaneously.
The internal resistance expressed in milli-ohm of the battery unit under test shall be calculated from the formula given below:
(V2-V1)1000
R = —————–milli ohm
(A1-A2)
The internal resistance may also be measured by a direct reading meter of agreed to between the manufacturer and the purchaser.
The internal resistance when measured shall not be more than the value specified as for the respective class of diesel locomotives.
- After standing on open circuit for not less than 12 hrs and not more than 24 hrs. from the completion of a full charge, the battery unit shall be subjected to cycles of discharge at the rate of initial cranking current given in Appendix-C. Each discharge shall be of 15 secs. duration with an intermittent rest of 15 secs.
5.15.2 Requirements: The battery unit tested shall meet the minimum requirements specified as below
INITIAL CRANKING CURRENT TEST:
| Ambient temperature | Discharge current (15 sec with 15 sec rest) | Min no of such 15 secs cycles | Battery terminal initial at 5-7 secs | Final voltage (V) |
| 27 +/- 2 deg C | 1500 Amps | 8 | 1.1xn 8V | 0.80xn 4.4V |
| where n=no of cells in series per battery unit | ||||
- After standing on open circuit for not less than 12 hrs. and not more than 24 hrs. on the completion of full charge, the battery unit shall be subjected to a continuous discharge at the rate of sustained cranking current as given in given in Appendix-C.
- This discharge may not be taken immediately after initial cranking current test but may be preceded by one C10 discharge.
- Requirements: The battery unit tested shall meet the minimum requirements specified below:
Microtex End on Generation 8V 290Ah battery has passed with 9 minutes 24 secs
SUSTAINED CRANKING CURRENT TEST:
| Ambient temperature | Discharge current | Min discharge 5-7 secs | Battery terminal initial V | Final voltage (V) |
| 27 +/- 2 deg C | 940 Amps | 5 | 1.4xn 8V | 1xn 4.4 |
| where n=no of cells in series per battery unit | ||||
Please click to view certificate
- Microtex End on Generation batteries are supplied suitably packed for distant transport within India or in sea worthy pallets for exports.
- Instruction & maintenance manual
- Charging manual & user record book
- Peace of mind with our dedicated all India service support
Often taken for granted until things go wrong, batteries require some small maintenance and care. End on Generation Batteries are composed of lead-acid cells, which need an equalizing charge once a year to prevent capacity loss and to bring up all the cells up to the same voltage. Leave this to the battery experts at Microtex
We shall be happy to maintain your the End on Generation battery & help protect your equipment. Call us now & inquire about our friendly service package for your End on Generation batteries +91 9686 448899
Please provide us with the following information to ensure that you receive the right product for years of great performance:
- What is the required quantity you need? Please email us & we shall get back to you soonest.
Please click the link below to view:
Discharge Curves
Industry-leading European Battery Experts work with us
The best experts from the European battery, industry assist in the design of Microtex Railway End on Generation battery & Processes to European Standards – Making us the preferred End on Generation Batteries Suppliers to the Indian Railways!
Microtex have been manufacturing & exporting batteries from 1977!
Microtex timeline
Why choose a Microtex End on Generation Batteries?
Technical information & unique characteristics
- Very strong Hard Rubber Battery Container
- Unique flame-proof design vent plug with visual float level indicator for easy checking of acid level without opening each plug
- Designer lead alloys with low antimony, tin, selenium, arsenic for positive electrodes & special additives for negative electrodes to prevent failure due to corrosion
- Lower antimony ensures lesser water topping up requirements. With a Microtex End on Generation battery it feels like a water less battery
- Accurately balanced active materials ensure overcharge tolerance giving you long life & trouble free performance
- Cured & formation processed plates - ensures high-quality
- Superior Woven Tubular Gauntlets (not NONWovens) for tubular electrodes. Woven tubular gauntlets will not rupture in service and active material will not leak causing internal shorts & failure
- High-quality electrolytic grade lead coated copper intercell connectors
Robust construction
- Thicker spine grids & busbar ensure better compaction of lead, can withstand corrosion & provides longer life
- Incredible 150 Bar pressure die casted spine grids for positive tubular electrodes (densely compacted under such high pressures prevent early corrosion failures)
- Poly Propylene copolymer (PPCP) container specially designed for a hermetically strong bonded heat sealing of container to lid
- Special Tin coated copper inserts in terminal posts for faster current conductivity
- Factory formed Batteries – Quick initial charge, saves time
- Microtex invests years of in-house experience. Our world-renowned battery scientists and experts continuously test and improves our products. Because of this, you’ll receive a more efficient battery than you are likely to buy elsewhere
You get -
- Tubular battery design ensures deep cycle capabilities
- High capacity tubular battery with deep discharge characteristics recovers from deep cycles quickly
- Trouble-free performance
- Delivers the rated capacity
- We ensure our Railway End on Generation battery price is among the most competitive in the industry
with more benefits for you
- Long service life - Best return on investment costs
- Low water consumption – less frequent maintenance – very low maintenance costs
- Excellent Reserve Capacity- Designed to sustain PSoC up to six months
- Higher charge efficiency = ampere-hour efficiency of over 90%
- Deep-discharge capabilities with higher charge efficiency = ampere hour efficiency of over 90%
- All India service network
Special unique features & benefits of Microtex End on Generation Batteries
Special Patented alloys for ULM
Ultra Low Maintenance characteristics. Microtex uses very low antimony selenium tin lead alloys to ensure water consumption is minimum. Reducing the need for frequent water topping up. Feels like a water less battery!
Woven Pluri-Tubular Bags
Microtex only uses the higher quality woven PT Bags (NOT Nonwoven like in teabags). Made from high-tenacity, multi-strand, multi-filament polyester yarns treated with acrylic resins for high acid-resistance & oxidation resistance. The plate will not rupture during service!
Incredible 150 Bar Rusch Spine Grid
The spine grids for the tubular plate electrodes are cast on ultra-modern pressure die casting machines. Lead is compacted densely into the spines under these high pressures. Keeps the heavy duty grids corrosion-free
99.985% Purity Lead
Every lot of High purity of lead, is tested in-house for purity with Spark Emission Spectrophotometer. Ensures very long life battery performance. Presence of impurities like, Ferrous, Zinc, Manganese, Nickel, Cadmium, etc harm the battery. If untested it can harm the battery causing ealry failures.
Nano-Carbon Paste formula
Microtex special paste formula incorporating nano-carbon additives with graphite ensures quick recharge due to higher charge acceptance rates. This gives it superior high-rate power C5 power ratings & minimizes charging time.
Amazing 127-points quality check
Our batteries go through 127 check points before the battery reaches you. Our stringent ISO systems & process controls ensure that you get a trustworthy, reliable & dependable battery. Resulting in increased uptime with higher productivity. Highest cyclic endurance & best in class gravimetric energy density.
Here is the perfect solution if you want
trouble-free Diesel Locomotive battery performance
What is the cost of Railway End on Generation battery?
Experience shows that 90% of batteries last only 2 to 3 years.
Don’t let that happen! Choose long-lasting deep-cycle batteries from Microtex. Dependable lead acid battery capacity so you can get the complete performance of over 4 years. Your return on investment in Microtex End on Generation batteries is assured with the high performance & long life!
How long do Railway End on Generation batteries last?
Special designer lead alloys, with super additives, tin, low-antimony, arsenic, ensuring a really long life for your Microtex Railway EoG battery. In addition, we add nucleating agents like selenium, sulfur & copper to ensure the lead electrodes do not corrode for a long time, ensuring a very long life. The addition of nucleating agents gives the grids a fine-grained structure with good corrosion resistance as otherwise, the coarse dendritic structure will be prone to hot cracking and porosity.
Microtex Railway End on Generation Batteries
How much does an 8V 290Ah battery cost?
Send us an inquiry, now.
Our happy customers
All logos belong to the respective companies & Microtex is not associated with the brands
Microtex Reputation. Highly demanding customer base
- OEM suppliers to manufacturers
- leading user manufacturing industries
- Indian Railways
- Oil companies
- Nuclear Power Corporation of India
- Exported globally
Get a quote, Now!
Established in 1969
Exporting Batteries to 43 countries since 1977!
Battery manufacturing plant in India
What Microtex customers experience
Related Batteries
- Railway Battery
- Diesel Locomotive Battery
- Signaling Battery
- TRD Battery
- Train Lighting Battery
Send us an inquiry, now.
Related Battery Blog Articles
Battery Mistakes All End on Generation battery Owners Need To Avoid!
Do not mix new batteries with old batteries
Railway End on Generation Battery reconditioning: often reconditioning an old starter battery can become quite a costly affair if you keep replacing dead batteries one by one; even the new battery will drain out rapidly as the old batteries tend to draw more out of the new one.
EoG power car replacement batteries: It is best to have an expert from the company visit you to have a thorough inspection of the EoG batteries after a complete charge, compare the cell voltage, specific gravity to decide the state of charge & whether in needs to be replaced at all.
Avoid any sort of additives or desulfation methods
How to recondition End on Generation batteries? EoG Batteries are electro-chemical devices. All chemicals have a half-life period beyond which regeneration with chemical additives or desulfators for batteries have little effect if any temporary.
The normal mode of failure of End on Generation batteries is usually due to grid corrosion if the lead alloys are not designed properly. Desulfators cannot repair corroded grids.
